3D printing history
3D printing has become more and more popular nowadays. Over the last few years, the prices of the printers and printing materials have gone significantly down, making the technology available for a casual user. Yet, it may surprise you that 3D printing technology is not a novelty, it is almost 40 years old!
Charles Hull
https://3dprinterchat.com/3d-printing-history/
The history of 3D printing begins in the 80s' with Charles Hull and the idea of slicing the model and printing only one layer at a time. He invented stereolithography, a process in which a UV laser beam hits a liquid acrylic material called photopolymer, hardening the surface immediately. The liquid then rises, covering the previous layer and the laser hardens another slice and so on. In time the whole model is done.
Chuck Hull explains Stereolithography
This method worked quite well for delivering a quick prototype that would otherwise consume lots of effort, machines and time. Nevertheless, it wasn't perfect. There were lots of imperfections on the surface and the production was quite expensive. Stereolithography was later upgraded and perfected and it is still used today. The prints were later done with powder instead of liquid, which made it more manageable, the precision was improved and the process was more stable. However, those printers never made it to a casual user.
In 1999 the history of 3D printing had an unexpected turn as the first printed organ was successfully implanted to a human. It was a bladder that was printed from a synthetic material later covered with patient cells. In the next 10 years, 3D printing found its use in various medical fields. It mostly focused on prosthetics, carefully built for the individual needs, although scientists were able to print a miniature kidney and bioprint blood vessels.

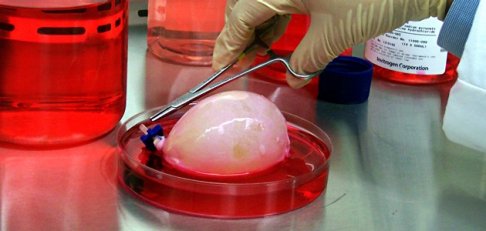

A 3D printed bladder mold coated with human bladder cells resting in a mixture of nutrients and growth factors.
https://www.illinoisscience.org/2019/10/3d-printing-artificial-organs-medical-technology-biotech/
Today 3D printing has reached a stage in which it is available to the most. The technology still bases on the same slicing principle, but rather than lighting the material with laser we heat it and extrude the plastic through a tiny hole that paints the model's layers. In most printers, both the extruder and the table moves accordingly, creating a model.
Crazy 3D Prints! (TimeLapse episode 14)
This is an example of how such a process looks like.
The material that is used in modern printers is called a filament. There are various kinds, most common PLA and ABS are standard durable plastic materials, but you can also find rubber or TPU that is flexible like a rubber duck. There are also filaments made partially with wood, creating natural-looking sculptures that are easy to polish or to sculpt even further. There were even experiments with chocolate printing, however, you have to use the worst kind of chocolate to form it properly.
TPU
https://www.sculpteo.com/en/3d-learning-hub/3d-printing-materials-guide/what-is-tpu/
During this 3D printing revolution, people formed a large community of creators giving away or selling their models that one can print at home. This could potentially revolutionise the market, cutting the prices of production and shipment.
For the very casual and artistic use, there is also a hand-held device called 3Doodler that is essentially a pen that can heat and extrude the material just like printers do. I would say it is like sketching in the world of 3d printing.
3Doodler
https://gfycat.com/pl/deadlymeatyfugu
The future of 3D printing seems promising. NASA is hugely interested in this technology, researching food printing and zero-gravity printing. Hopefully, we will see prototypes soon.
Questions:
Have you realised that you are probably younger than 3D printing technology?
Did you know how the 3D printing process works?
Would you try out 3Doodler? Or maybe you have some experience with 3D printing?
Bibliography
https://www.illinoisscience.org/2019/10/3d-printing-artificial-organs-medical-technology-biotech/
https://3dprinterchat.com/3d-printing-history/
https://www.youtube.com/watch?v=M4yHCqW4nVc&ab_channel=BenHommerding
https://www.sculpteo.com/en/3d-learning-hub/3d-printing-materials-guide/what-is-tpu/
